Minishell: Building a Mini-Bash Shell from Scratch in C

jdecorte-be/minishell

A 42 school project to create a simple shell interpreter in C. Recreates core bash functionalities like pipes, redirections, and built-in commands.

Languages

C98.2%

Makefile1.8%

Introduction

Ever wondered how your terminal shell actually works? How does it parse commands, execute programs, handle pipes, and manage processes? Minishell is a 42 school project that challenges you to build your own mini version of Bash from scratch in C. It's an incredible journey into the depths of Unix systems programming.

This project implements a functional shell program that handles:

Command parsing and execution
Pipes and redirections
Environment variable expansion
Built-in commands (cd, echo, pwd, export, unset, env, exit)
Signal handling (Ctrl-C, Ctrl-D, Ctrl-)
Process management with proper cleanup

In this article, I'll walk through the key concepts and implementation challenges of building a shell, from understanding processes and pipes to handling signals and building command pipelines.

Project Overview

Minishell is a miniature shell program based on Bash that supports:

Core Features:

Interactive prompt with command history (up and down arrows)
System executables from the environment (ls, cat, grep, etc.)
Local executables (./minishell)
Builtin commands with their essential options
Pipes (|) for chaining commands
Redirections (>, >>, <, <<)
Environment variable expansion ($USER, $VAR)
Exit status tracking ($?)
Signal handling for user interrupts

Limitations: The project intentionally doesn't support backslashes, semicolons, logical operators (&&, ||), or wildcards to keep the scope manageable while still covering the fundamental concepts.

Understanding Processes

Before diving into implementation, let's understand what processes are and how they work.

What is a Process?

A process is a program in execution. When you run a program, the system loads its instructions into RAM and executes them. The operating system manages all processes and allocates memory to each one independently—each has its own stack, heap, and instruction pointer.

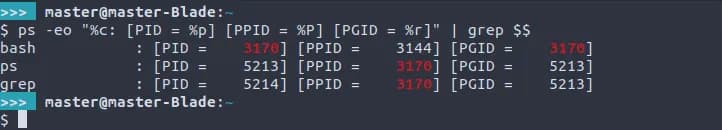

You can view active processes with:

ps aux

Each process has:

PID (Process Identifier): A unique non-negative integer
PPID (Parent Process Identifier): Reference to the parent process

Processes are organized hierarchically. At startup, Unix has just one process called init (PID 1), which is the direct or indirect ancestor of all other processes.

Fork: Creating a Child Process

The fork() system call creates a new process by cloning the current one:

#include <unistd.h>

pid_t fork(void);

The return value is crucial:

In the parent process: Returns the child's PID
In the child process: Returns 0
On error: Returns -1

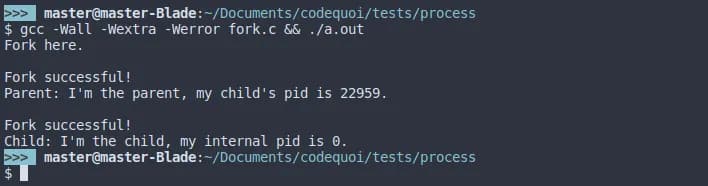

Here's a basic example:

#include <unistd.h>
#include <stdio.h>

int main(void)
{
    pid_t pid;

    printf("Before fork\n");

    pid = fork();

    if (pid == -1)
    {
        perror("fork failed");
        return 1;
    }
    else if (pid == 0)
    {
        // Child process
        printf("I'm the child, PID: %d\n", getpid());
    }
    else
    {
        // Parent process
        printf("I'm the parent, child PID: %d\n", pid);
    }

    return 0;
}

Important: The child inherits the parent's instruction pointer, so it doesn't start from the beginning—it continues from where fork() was called!

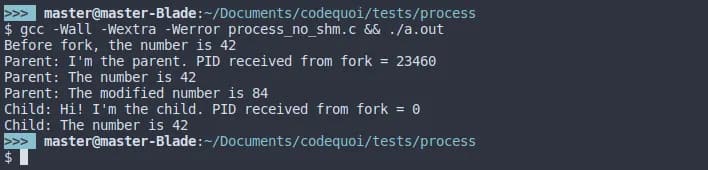

Memory: Duplicated but Not Shared

When you fork, the child gets a copy of the parent's memory, not a shared reference. Changes made in one process don't affect the other:

int main(void)
{
    int value = 42;
    pid_t pid;

    pid = fork();

    if (pid == 0)
    {
        value = 100;  // Child changes value
        printf("Child: value = %d\n", value);
    }
    else
    {
        sleep(1);  // Wait for child to finish
        printf("Parent: value = %d\n", value);  // Still 42!
    }

    return 0;
}

This isolation is why we need inter-process communication mechanisms like pipes.

Wait: Managing Child Processes

After creating a child process, the parent should wait for it to finish. Otherwise, you can get zombie processes—terminated children whose exit status hasn't been collected.

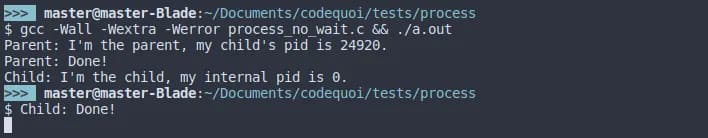

When a parent doesn't wait for its children, they become zombies:

Conversely, if a parent exits before waiting, children become orphans and are adopted by init:

The wait() and waitpid() Functions

#include <sys/wait.h>

pid_t wait(int *status);
pid_t waitpid(pid_t pid, int *status, int options);

wait() waits for any child process to terminate.

waitpid() offers more control:

pid: Specific child to wait for, or -1 for any child
status: Pointer to store the exit status
options: Flags like WNOHANG (return immediately if child hasn't exited)

Analyzing Exit Status

Use these macros to examine the status:

if (WIFEXITED(status))
{
    // Child exited normally
    int exit_code = WEXITSTATUS(status);
    printf("Exit code: %d\n", exit_code);
}

if (WIFSIGNALED(status))
{
    // Child was terminated by a signal
    int signal = WTERMSIG(status);
    printf("Terminated by signal: %d\n", signal);
}

Example: Proper Child Process Management

#include <unistd.h>
#include <sys/wait.h>
#include <stdio.h>
#include <stdlib.h>

int main(void)
{
    pid_t pid;
    int status;

    pid = fork();

    if (pid == 0)
    {
        // Child process
        printf("Child: Working...\n");
        sleep(2);
        exit(42);
    }
    else
    {
        // Parent process
        printf("Parent: Waiting for child...\n");
        waitpid(pid, &status, 0);

        if (WIFEXITED(status))
        {
            printf("Parent: Child exited with code %d\n",
                   WEXITSTATUS(status));
        }
    }

    return 0;
}

Here's what the output looks like when analyzing exit status:

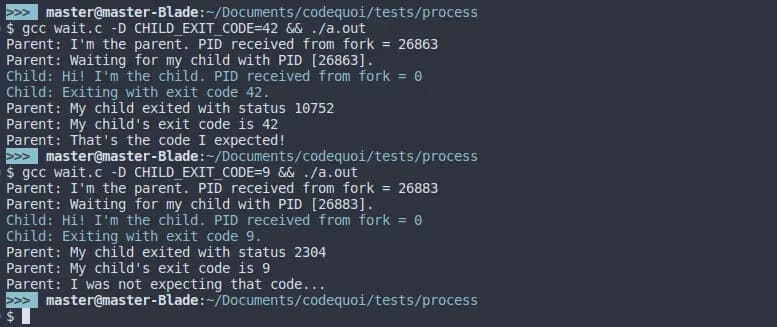

And here's a comparison with different exit codes:

Pipes: Inter-Process Communication

Pipes are the foundation of shell command chaining. They allow one process's output to become another's input.

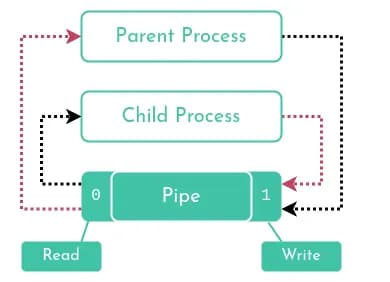

What is a Pipe?

A pipe is a unidirectional communication channel with:

A read end (file descriptor)
A write end (file descriptor)

Data written to the write end is buffered until read from the read end.

Creating a Pipe

#include <unistd.h>

int pipe(int pipefd[2]);

The pipefd array will contain:

pipefd[0]: Read end
pipefd[1]: Write end

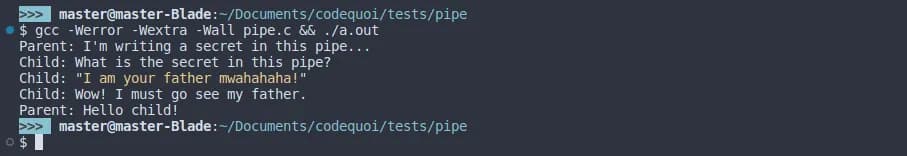

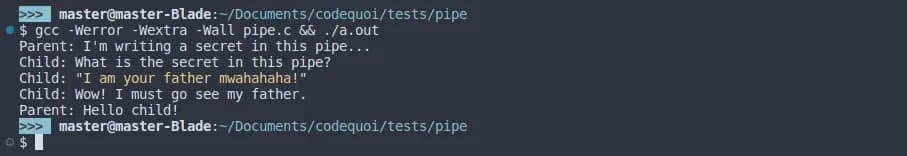

Basic Pipe Example

#include <unistd.h>
#include <stdio.h>
#include <string.h>

int main(void)
{
    int pipefd[2];
    pid_t pid;
    char buffer[100];

    if (pipe(pipefd) == -1)
    {
        perror("pipe");
        return 1;
    }

    pid = fork();

    if (pid == 0)
    {
        // Child reads from pipe
        close(pipefd[1]);  // Close write end
        read(pipefd[0], buffer, sizeof(buffer));
        printf("Child received: %s\n", buffer);
        close(pipefd[0]);
    }
    else
    {
        // Parent writes to pipe
        close(pipefd[0]);  // Close read end
        char *msg = "Hello from parent!";
        write(pipefd[1], msg, strlen(msg) + 1);
        close(pipefd[1]);
        wait(NULL);
    }

    return 0;
}

Critical: Close Unused File Descriptors!

This is crucial and often the source of bugs. Each process must close the pipe ends it doesn't use:

If all write ends aren't closed, read() will wait indefinitely instead of returning EOF
If all read ends aren't closed, write() will block when the pipe is full

// Parent writes to pipe
close(pipefd[0]);  // MUST close unused read end
write(pipefd[1], data, size);
close(pipefd[1]);  // MUST close when done

// Child reads from pipe
close(pipefd[1]);  // MUST close unused write end
read(pipefd[0], buffer, size);
close(pipefd[0]);  // MUST close when done

If you forget to close unused file descriptors, you'll see output like this where the process hangs indefinitely:

Implementing the Shell's Pipe Operator

When you run cat file.txt | wc -l, the shell:

Creates a pipe
Forks two child processes
Redirects the first command's stdout to the pipe's write end
Redirects the second command's stdin to the pipe's read end

Using dup2() to redirect file descriptors:

int pipefd[2];
pipe(pipefd);

// First command: cat file.txt
if (fork() == 0)
{
    close(pipefd[0]);              // Close read end
    dup2(pipefd[1], STDOUT_FILENO); // Redirect stdout to pipe
    close(pipefd[1]);
    execlp("cat", "cat", "file.txt", NULL);
}

// Second command: wc -l
if (fork() == 0)
{
    close(pipefd[1]);              // Close write end
    dup2(pipefd[0], STDIN_FILENO); // Redirect stdin from pipe
    close(pipefd[0]);
    execlp("wc", "wc", "-l", NULL);
}

// Parent closes all pipe ends and waits
close(pipefd[0]);
close(pipefd[1]);
wait(NULL);
wait(NULL);

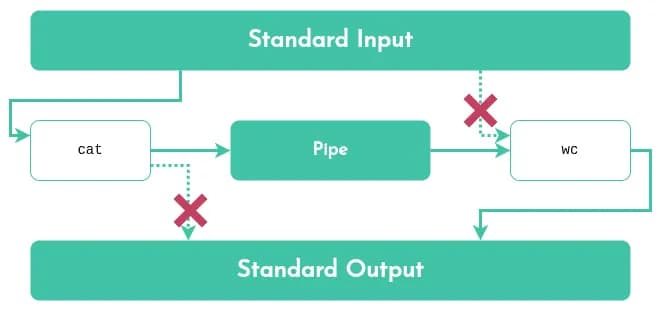

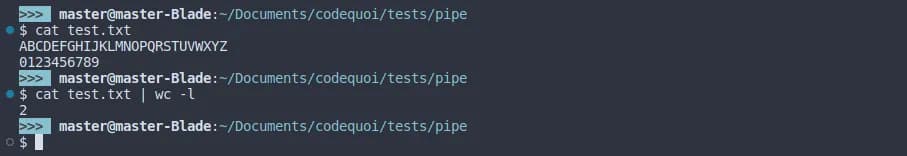

Here's a visual representation of how the shell's pipe operator works:

Building Pipelines

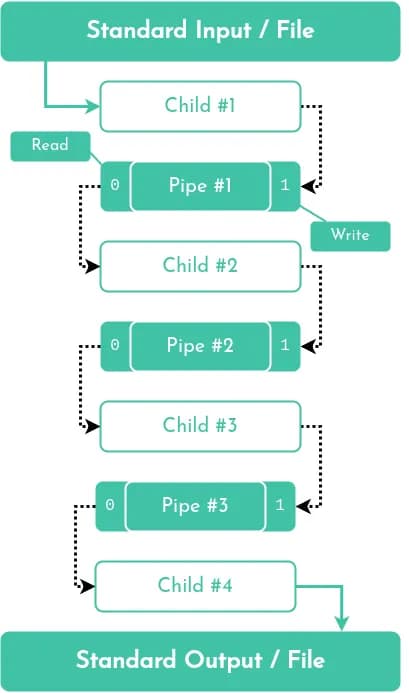

A pipeline like cmd1 | cmd2 | cmd3 requires multiple pipes. The pattern is:

N commands require N-1 pipes
Each middle command reads from one pipe and writes to the next

cmd1 --> pipe1 --> cmd2 --> pipe2 --> cmd3

Key implementation points:

Create all pipes before forking
Each child closes all pipe ends it doesn't use
First command only writes, last command only reads
Middle commands both read and write

// For 3 commands, need 2 pipes
int pipe1[2], pipe2[2];
pipe(pipe1);
pipe(pipe2);

// Command 1: only writes to pipe1
if (fork() == 0)
{
    dup2(pipe1[1], STDOUT_FILENO);
    close(pipe1[0]);
    close(pipe1[1]);
    close(pipe2[0]);
    close(pipe2[1]);
    // Execute command 1
}

// Command 2: reads from pipe1, writes to pipe2
if (fork() == 0)
{
    dup2(pipe1[0], STDIN_FILENO);
    dup2(pipe2[1], STDOUT_FILENO);
    close(pipe1[0]);
    close(pipe1[1]);
    close(pipe2[0]);
    close(pipe2[1]);
    // Execute command 2
}

// Command 3: only reads from pipe2
if (fork() == 0)
{
    dup2(pipe2[0], STDIN_FILENO);
    close(pipe1[0]);
    close(pipe1[1]);
    close(pipe2[0]);
    close(pipe2[1]);
    // Execute command 3
}

// Parent closes all pipes and waits
close(pipe1[0]);
close(pipe1[1]);
close(pipe2[0]);
close(pipe2[1]);
// Wait for all children

Signal Handling

Shells need to handle user interrupts gracefully. When you press Ctrl-C, you don't want to exit the shell—just the current command.

Understanding Signals

A signal is an asynchronous notification sent to a process. Common signals:

SIGINT (2): Interrupt (Ctrl-C)
SIGQUIT (3): Quit (Ctrl-)
SIGTERM (15): Termination request
SIGKILL (9): Force kill (cannot be caught!)
SIGSTOP (19): Stop process (cannot be caught!)

Here's a visual representation of how signals work at the system level:

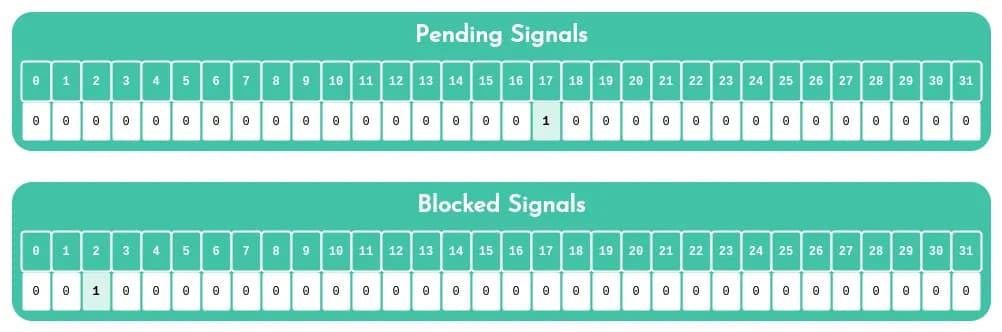

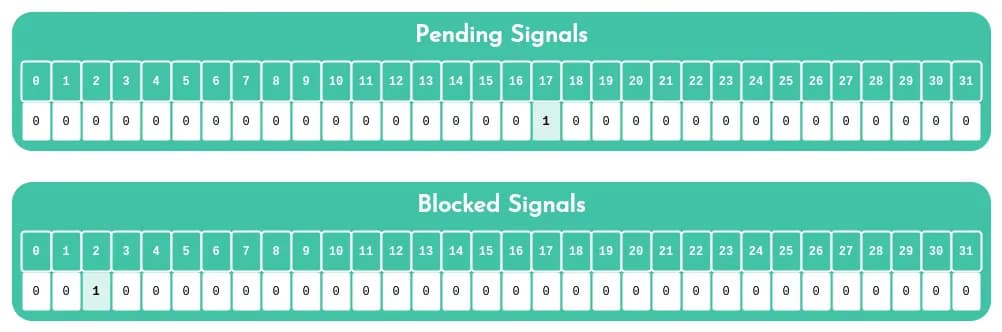

It's important to understand that signals can be pending. When a signal is blocked, it becomes pending until it's unblocked:

Important: There can only be one pending signal of any particular type. If multiple signals of the same type are sent while blocked, only one will be delivered when unblocked.

The sigaction() Function

The modern way to handle signals is with sigaction():

#include <signal.h>

struct sigaction {
    void (*sa_handler)(int);      // Handler function
    sigset_t sa_mask;             // Signals to block during handler
    int sa_flags;                 // Flags (e.g., SA_RESTART)
};

int sigaction(int signum, const struct sigaction *act,
              struct sigaction *oldact);

Basic Signal Handler Example

#include <signal.h>
#include <stdio.h>
#include <unistd.h>

void handle_sigint(int sig)
{
    write(STDOUT_FILENO, "\nCaught SIGINT!\n", 16);
}

int main(void)
{
    struct sigaction sa;

    sa.sa_handler = handle_sigint;
    sigemptyset(&sa.sa_mask);
    sa.sa_flags = SA_RESTART;

    if (sigaction(SIGINT, &sa, NULL) == -1)
    {
        perror("sigaction");
        return 1;
    }

    printf("Press Ctrl-C to test (Ctrl-\\ to quit)...\n");

    while (1)
        sleep(1);

    return 0;
}

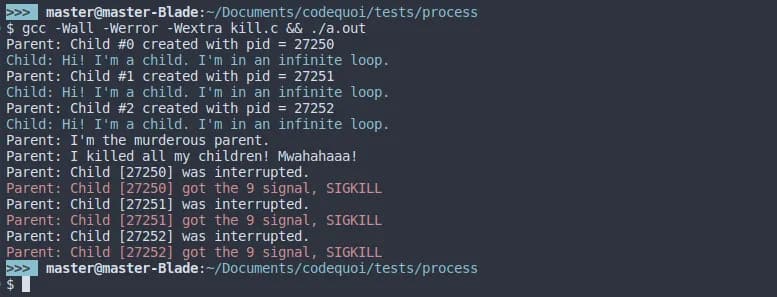

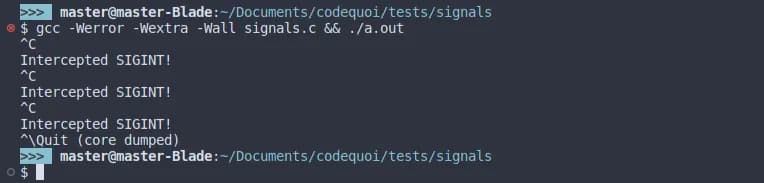

Example output showing signal handling:

Signal Safety Rules

Signal handlers are tricky! Follow these rules:

Keep handlers short and simple - Just set a flag if possible
Use only async-signal-safe functions - No printf(), malloc(), etc.!
Save and restore errno - Handlers can interfere with error handling
Block signals when accessing shared data
Use volatile sig_atomic_t for flag variables

Safe functions include: write(), _exit(), signal(), kill(), and a few others. Check the signal-safety(7) man page.

Minishell Signal Behavior

In Minishell, the expected behavior is:

Ctrl-C (SIGINT): Display a new prompt line (interrupt current command)
Ctrl-D: Exit the shell (EOF)
Ctrl-\ (SIGQUIT): Do nothing (ignore)

In the parent shell process:

void setup_signals(void)
{
    struct sigaction sa;

    // Handle SIGINT
    sa.sa_handler = handle_sigint;
    sigemptyset(&sa.sa_mask);
    sa.sa_flags = SA_RESTART;
    sigaction(SIGINT, &sa, NULL);

    // Ignore SIGQUIT
    sa.sa_handler = SIG_IGN;
    sigaction(SIGQUIT, &sa, NULL);
}

void handle_sigint(int sig)
{
    (void)sig;
    write(STDOUT_FILENO, "\n", 1);
    rl_on_new_line();      // Readline function
    rl_replace_line("", 0); // Clear current line
    rl_redisplay();        // Redisplay prompt
}

In child processes executing commands, restore default signal handling:

signal(SIGINT, SIG_DFL);
signal(SIGQUIT, SIG_DFL);

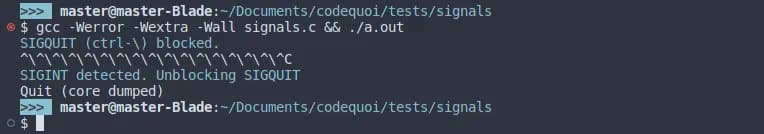

Blocking Signals

Sometimes you need to block signals temporarily:

sigset_t set;
sigemptyset(&set);
sigaddset(&set, SIGINT);

// Block SIGINT
sigprocmask(SIG_BLOCK, &set, NULL);

// Critical section here

// Unblock SIGINT
sigprocmask(SIG_UNBLOCK, &set, NULL);

Here's an example demonstrating signal blocking in action:

And what happens when a blocked signal is unblocked (notice how the pending signal is delivered immediately):

Redirections

Shells support redirecting input and output:

> : Redirect output (overwrite)
>> : Redirect output (append)
< : Redirect input
<< : Here-document (read until delimiter)

Output Redirection: `>`

int fd = open("output.txt", O_WRONLY | O_CREAT | O_TRUNC, 0644);
if (fd == -1)
{
    perror("open");
    return 1;
}

dup2(fd, STDOUT_FILENO);  // Redirect stdout to file
close(fd);

// Now all output goes to output.txt
printf("This goes to the file\n");

Append Redirection: `>>`

int fd = open("output.txt", O_WRONLY | O_CREAT | O_APPEND, 0644);
dup2(fd, STDOUT_FILENO);
close(fd);

Input Redirection: `<`

int fd = open("input.txt", O_RDONLY);
if (fd == -1)
{
    perror("open");
    return 1;
}

dup2(fd, STDIN_FILENO);  // Redirect stdin from file
close(fd);

// Now reads come from input.txt
char buffer[100];
read(STDIN_FILENO, buffer, sizeof(buffer));

Here-Document: `<<`

A here-document reads input until a delimiter is reached:

cat << EOF
Line 1
Line 2
EOF

Implementation approach:

Display a prompt for each line
Read user input
Stop when delimiter is encountered
Store all lines in a temporary file or pipe
Redirect stdin from that source

// Simplified here-doc implementation
int pipefd[2];
pipe(pipefd);

// Read until delimiter
char *line;
while ((line = readline("> ")))
{
    if (strcmp(line, delimiter) == 0)
        break;
    write(pipefd[1], line, strlen(line));
    write(pipefd[1], "\n", 1);
    free(line);
}

close(pipefd[1]);
dup2(pipefd[0], STDIN_FILENO);
close(pipefd[0]);

Environment Variables

Shells maintain environment variables and expand them in commands.

Accessing the Environment

The environment is available through:

// Global variable
extern char **environ;

// Or passed to main
int main(int argc, char **argv, char **envp)

Each environment entry is a string: "NAME=value"

Expanding Variables

When you see $USER in a command, the shell should:

Extract the variable name
Look it up in the environment
Replace $USER with its value

char *get_env_value(char *name, char **env)
{
    int i = 0;
    size_t len = strlen(name);

    while (env[i])
    {
        if (strncmp(env[i], name, len) == 0 && env[i][len] == '=')
            return &env[i][len + 1];
        i++;
    }
    return NULL;
}

Special Variables

$? : Exit status of last command
$$ : Current shell's PID

These require special handling during parsing.

Builtin Commands

Some commands must be executed by the shell itself (not in a child process) because they affect the shell's state.

cd - Change Directory

int builtin_cd(char **args)
{
    char *path = args[1];

    if (!path)
        path = getenv("HOME");

    if (chdir(path) != 0)
    {
        perror("cd");
        return 1;
    }

    return 0;
}

export - Set Environment Variable

int builtin_export(char **args, char ***env)
{
    if (!args[1])
    {
        // Print all environment variables
        print_env(*env);
        return 0;
    }

    // Add/update variable
    char *name = args[1];
    // Parse NAME=value format
    // Update environment

    return 0;
}

exit - Exit Shell

int builtin_exit(char **args)
{
    int exit_code = 0;

    if (args[1])
        exit_code = atoi(args[1]);

    exit(exit_code);
}

Other builtins: pwd, env, unset, echo -n

Parsing: Lexer and Parser

Building a shell requires parsing user input into a command structure. This typically involves:

Lexer (Tokenization)

Break input into tokens:

Input: ls -la | grep txt > output.txt
Tokens: [ls] [-la] [|] [grep] [txt] [>] [output.txt]

Parser (Syntax Analysis)

Build a command structure:

typedef struct s_redir
{
    int type;           // <, >, <<, >>
    char *file;
    struct s_redir *next;
} t_redir;

typedef struct s_cmd
{
    char **args;        // Command and arguments
    t_redir *redirs;    // List of redirections
    struct s_cmd *next; // Next command in pipeline
} t_cmd;

Parse the tokens into this structure, handling:

Quotes (single and double)
Variable expansion
Whitespace
Special characters

Execution Flow

Putting it all together:

while (1)
{
    // 1. Display prompt
    char *line = readline("minishell$ ");
    if (!line)
        break;  // Ctrl-D

    // 2. Add to history
    add_history(line);

    // 3. Parse input
    t_cmd *cmd = parse_line(line);

    // 4. Execute command
    if (is_builtin(cmd))
        execute_builtin(cmd);
    else
        execute_pipeline(cmd);

    // 5. Cleanup
    free_cmd(cmd);
    free(line);
}

The execute_pipeline() function:

void execute_pipeline(t_cmd *cmds)
{
    int num_cmds = count_commands(cmds);
    int pipes[num_cmds - 1][2];

    // Create all pipes
    for (int i = 0; i < num_cmds - 1; i++)
        pipe(pipes[i]);

    // Fork and execute each command
    t_cmd *current = cmds;
    for (int i = 0; i < num_cmds; i++)
    {
        if (fork() == 0)
        {
            // Setup redirections for this command
            if (i > 0)  // Not first command
                dup2(pipes[i-1][0], STDIN_FILENO);
            if (i < num_cmds - 1)  // Not last command
                dup2(pipes[i][1], STDOUT_FILENO);

            // Close all pipe fds
            close_all_pipes(pipes, num_cmds - 1);

            // Apply redirections from command
            apply_redirections(current->redirs);

            // Execute
            execve(current->args[0], current->args, environ);
            exit(1);
        }
        current = current->next;
    }

    // Parent closes all pipes and waits
    close_all_pipes(pipes, num_cmds - 1);
    for (int i = 0; i < num_cmds; i++)
        wait(NULL);
}

Key Challenges and Solutions

1. Memory Leaks

With all the forking and string manipulation, leaks are easy:

Use Valgrind religiously
Free everything in both parent and child paths
Be especially careful with readline's returned strings

2. File Descriptor Leaks

Unclosed file descriptors accumulate and cause mysterious bugs:

Track all opens/pipes with a list
Close in both parent and child
Use lsof -p <pid> to debug

3. Zombie Processes

Children not properly waited for become zombies:

Always wait() or waitpid() for children
Use WNOHANG if you need non-blocking checks

4. Race Conditions

With multiple processes and signals:

Block signals during critical sections
Use proper signal-safe functions
Be careful with shared resources

5. Quote Handling

Quotes are surprisingly complex:

echo "Hello $USER"   # Expands variables
echo 'Hello $USER'   # Literal string
echo "He said 'hi'"  # Nested quotes

Implement a state machine to track quote context.

Testing and Debugging

Testers

Several community testers exist:

Debugging Tips

Start simple: Get basic command execution working first
Test incrementally: Add one feature at a time
Compare with bash: Run the same command in bash and your shell
Use strace: See all system calls: strace -f ./minishell
Check with valgrind: valgrind --leak-check=full --track-fds=yes ./minishell

Edge Cases

Empty input
Commands with only whitespace
Unclosed quotes
Invalid redirections
Permission errors
Non-existent commands
Signal delivery during system calls

Lessons Learned

Building Minishell taught me:

Systems programming is hard but rewarding - You gain deep appreciation for shells
Error handling is crucial - Every system call can fail
Resource management matters - File descriptors and memory are precious
RTFM - Man pages become your best friend
Testing is essential - Edge cases will break your shell

The project forces you to understand:

How processes actually work
The beauty and complexity of Unix pipes
Why signal handling is so tricky
What shells do when you type commands

Conclusion

Minishell is more than just a project—it's a deep dive into Unix fundamentals. By building a shell from scratch, you gain intimate knowledge of:

Process creation and management
Inter-process communication
Signal handling
File descriptors and I/O redirection
Command parsing and execution

Every time you open a terminal now, you'll understand what's happening under the hood. You'll appreciate the elegance of Unix's pipe philosophy and the complexity involved in making it all work seamlessly.

The skills learned here transfer directly to systems programming, understanding how tools like Docker and systemd work, and building more complex concurrent applications.

If you're working on Minishell or a similar project, embrace the challenge. Debug patiently, test thoroughly, and don't be afraid to dive deep into man pages. The frustration is temporary, but the knowledge is permanent.

Happy shell building! 🐚

Resources

GNU Bash Manual
Man pages: man bash, man fork, man pipe, man signal
The Linux Programming Interface by Michael Kerrisk
Advanced Programming in the UNIX Environment by Stevens & Rago
Minishell Tutorial Series
